Lanebo Product

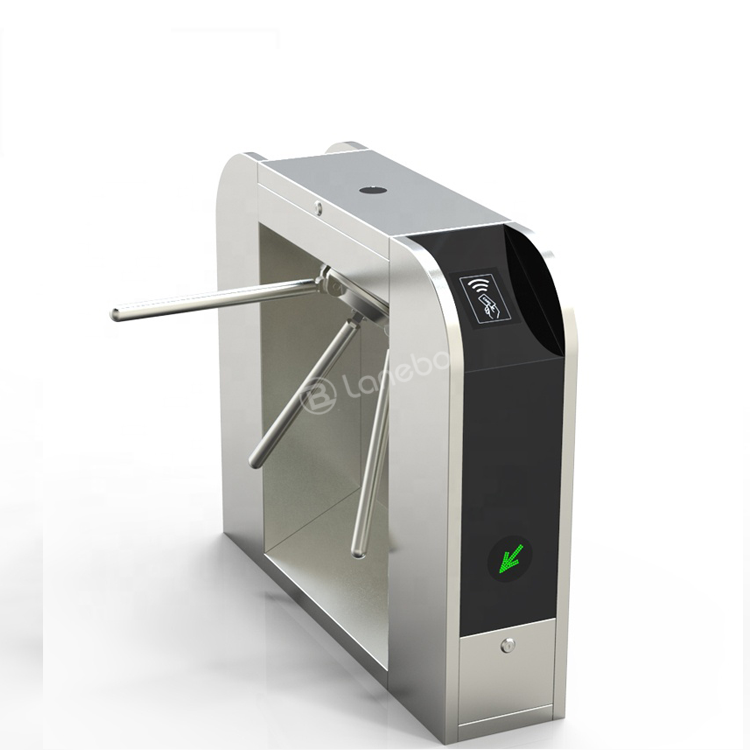

LB-S09BD Tripod turnstile

Product Description

Tripod turnstile is the simple type and practical. It is designed to assist pedestrian access control at guarded passage waysthe most obvious feature is that only one person can pass at one time. So it provides a perfect ticket control and access control solution for museums theatres exhibition paid toilets and so on.And the arms will drop down automatically when power off make sure to provide a safe paths out for people.


Model NO LB-S09BD
Size  1200*280*1000mm
Stick length 510mm
Power input AC 100-240V,50/60Hz
Working voltage 24V
Pass speed 30-35 persons/min
Open direction Bidirectional or Unidirectional
Working temperature -30℃~+70℃
Material 304 Stainless steel
Working humidity ≤95%
Work environment Outdoor and Indoor
Input signal 12v DC level or 12v pulse>100ms;  Relay Signal, Dry cotact
Communication interface RS485
Width of passage ≤550mm
IP Degree IP43
Service life ≥5 million
Support  Access Control system ID/IC card, Fingerprint, Face recognition, Barcode/QR code,
phone app, ESD system, Visitor system, etc.
