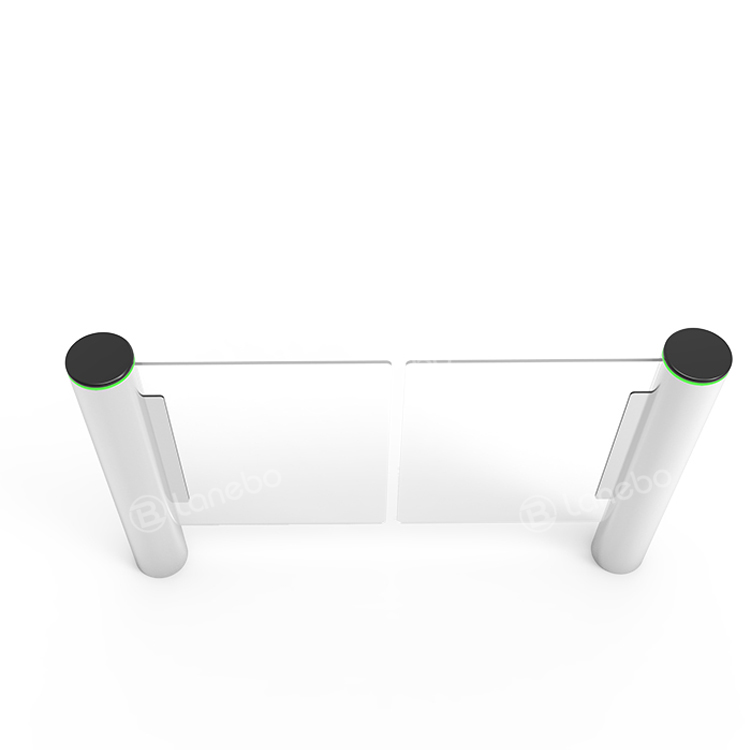

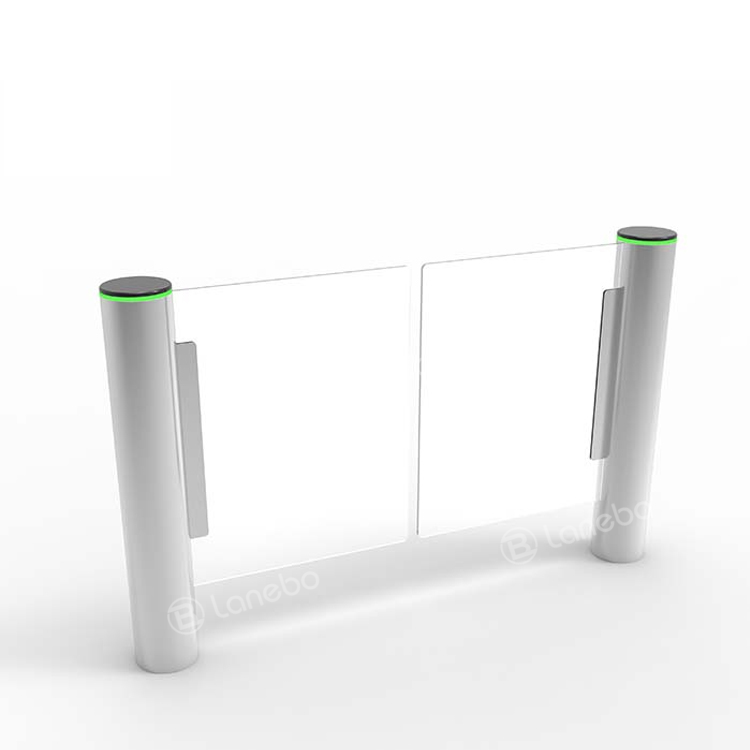

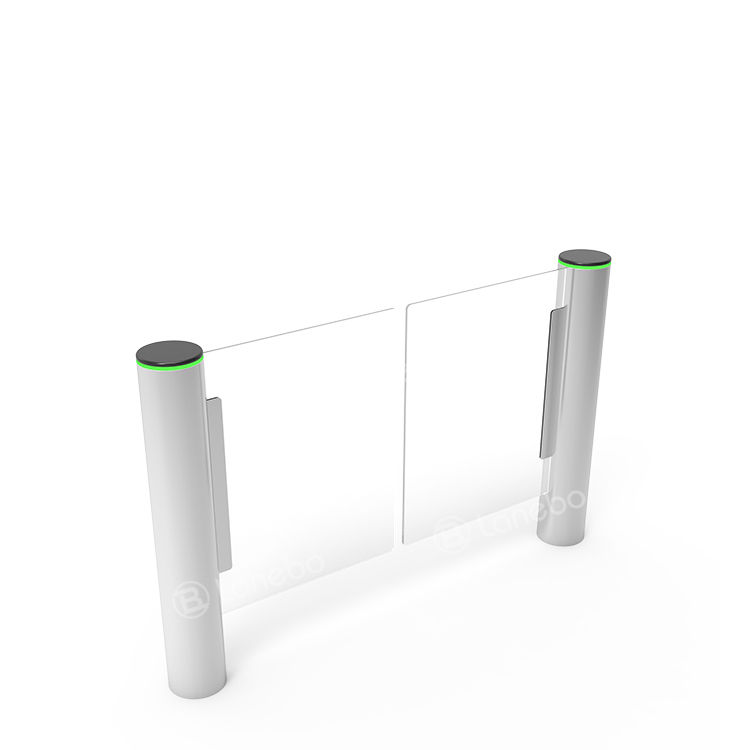

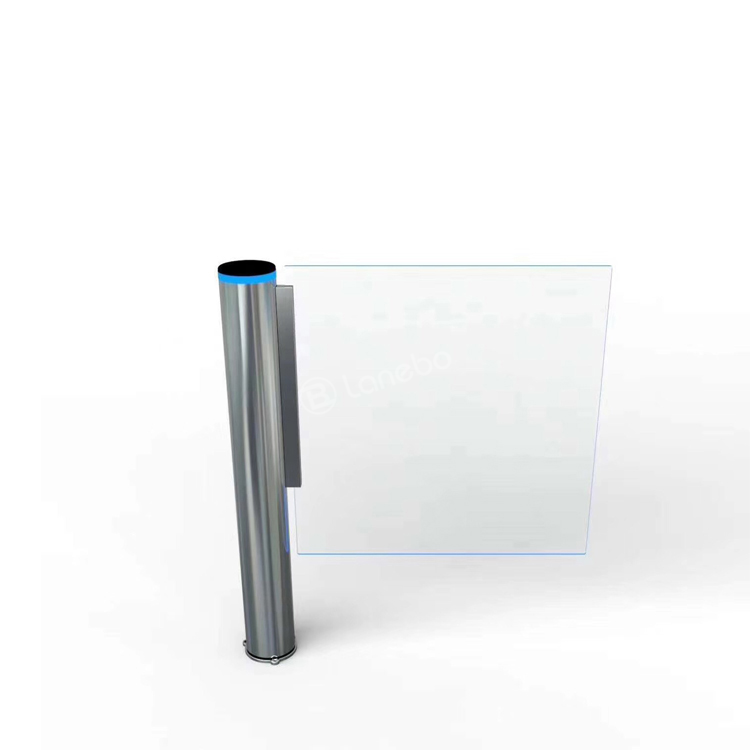

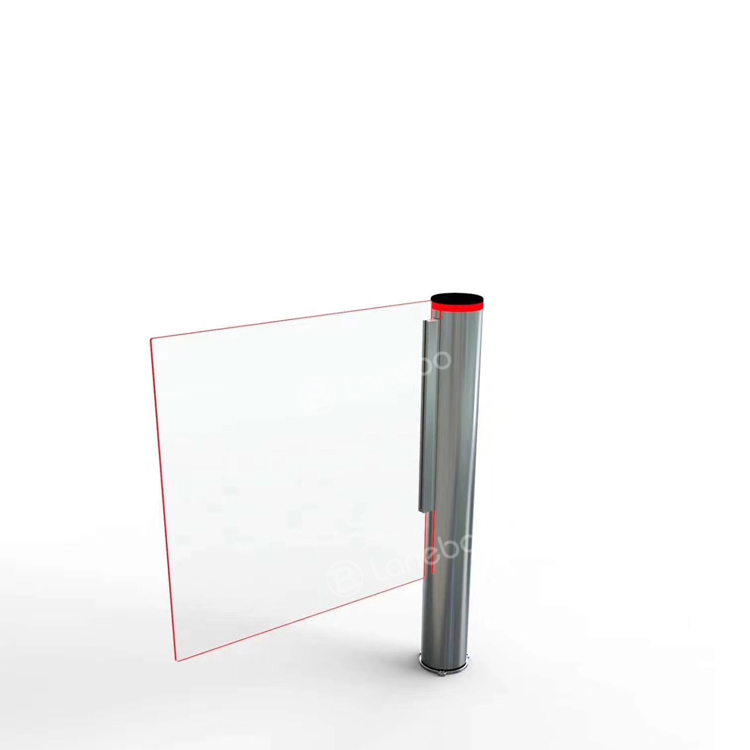

With only 120mm width slim and elegant designand attractive illumination performance speed gates offer a unique access control solution for high-end occasions. Opening in high speed of only 0.2 seconds speed gates have an excellent performance in balancing the throughput and compact footprint.
| Model NO | LB-T04BD |
| Size | 168*1050 mm |
| Channel width | 550-850 mm |
| Power input | AC 100-240V,50/60Hz |
| Working voltage | 24V |
| Pass rate | 50 persons/min |
| Gate operating time | 0.2S |
| Communication port | RS485 |
| Working humidity | ≤ 95% |
| Open direction | Unidirectional or bidirectional |
| Input signal | Open signal or 12v pulse>100ms; |
| Material | 304 Stainless steel |
| Service life | ≥ 5 million times |
| Working temperature | -30℃ ~ +70℃ |
| Work environment | Outdoor and Indoor |
| Support Access Control system |
ID/IC card, Fingerprint, Face recognition, Barcode/QR code, phone app, ESD system, Visitor system, etc. |
