Lanebo Product

LB-B08BD Swing turnstile

Product Description

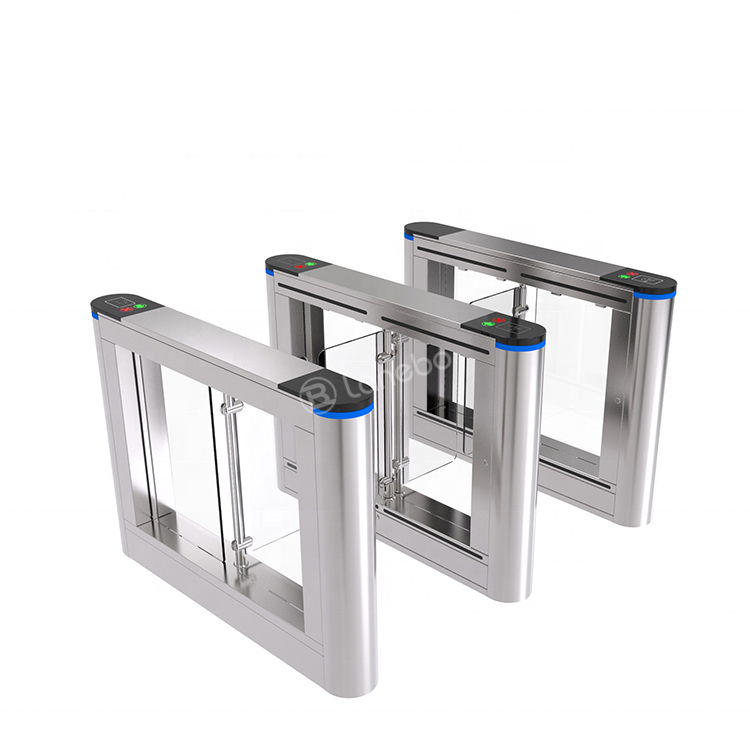

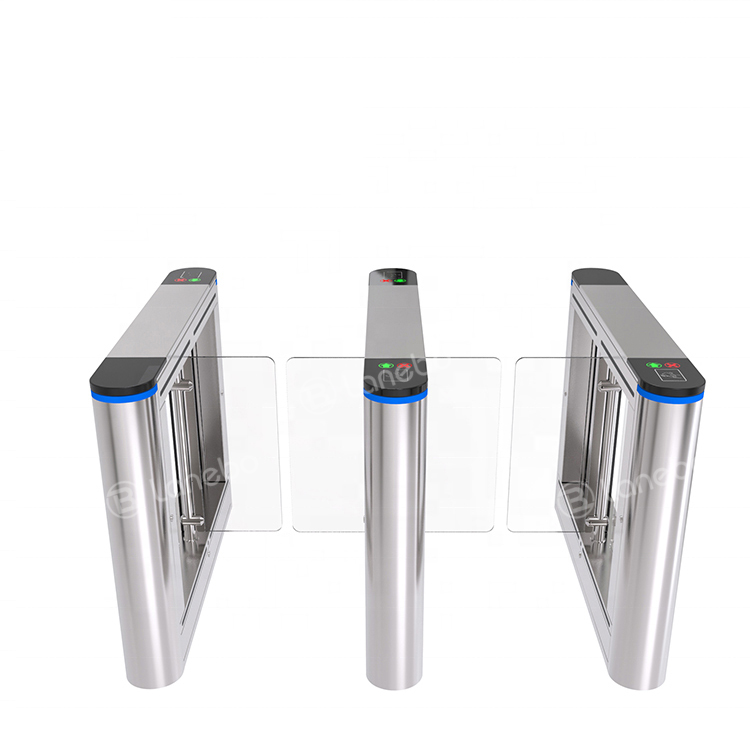

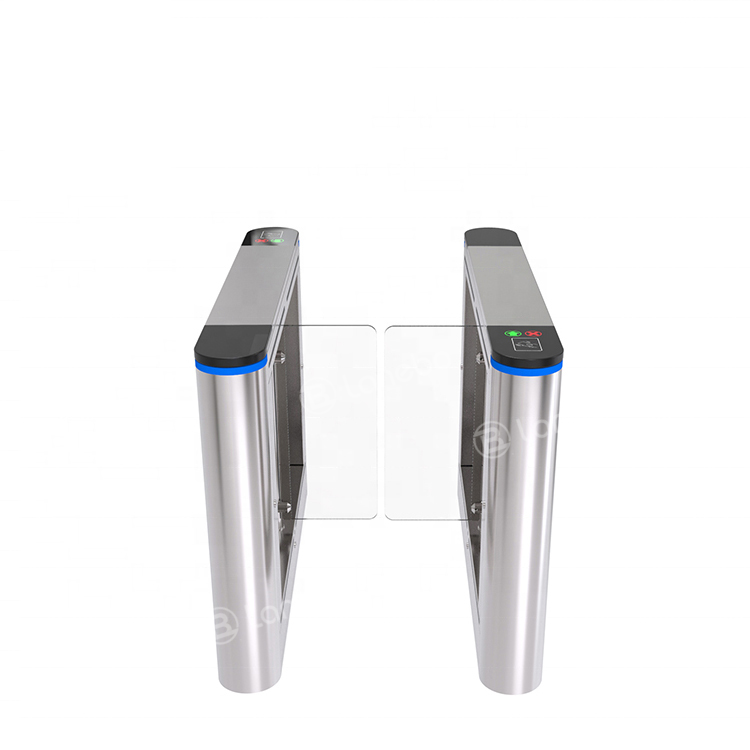

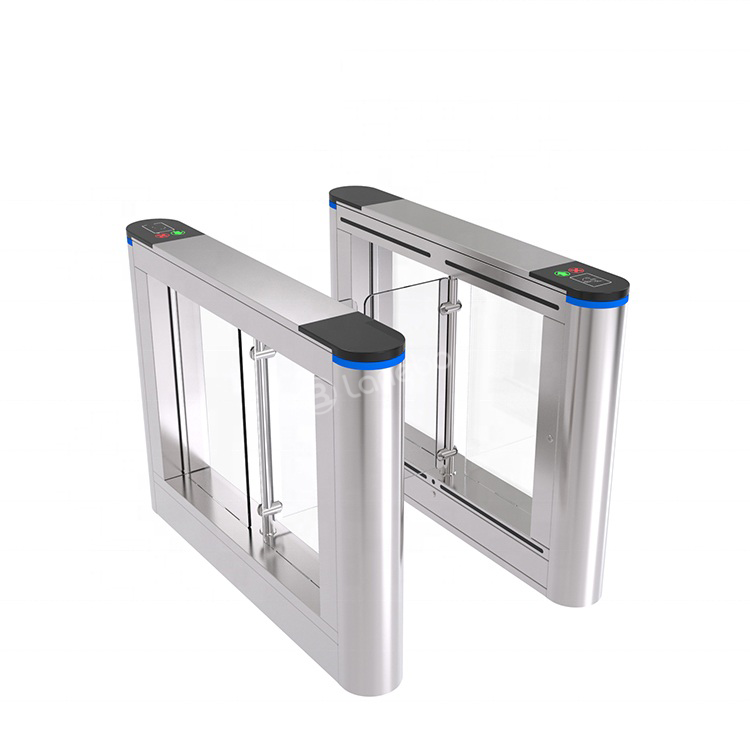

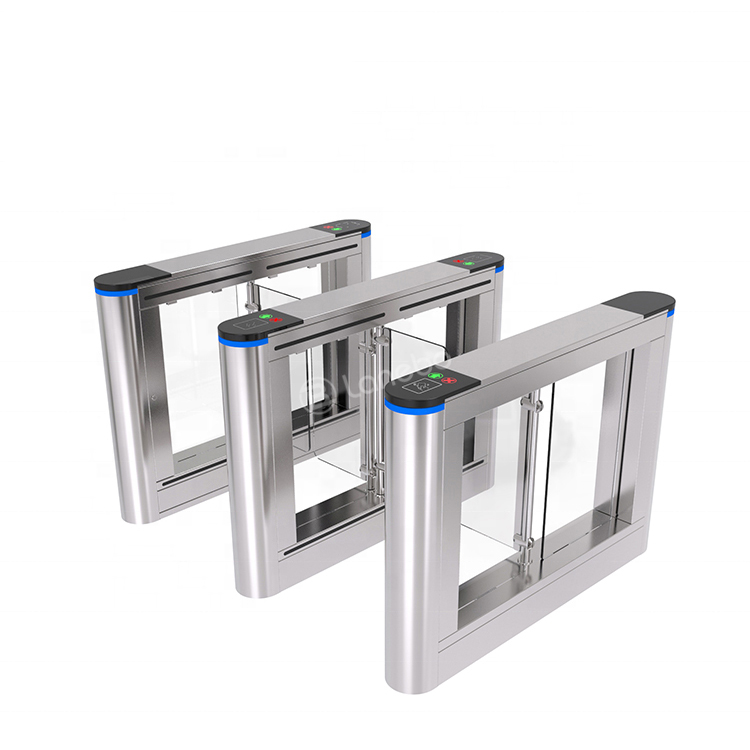

LB-B08BD swing barrier gate can be equipped with illuminated acrylic glass that visually indicates turnstile status while increasing comfort and clarity during passing the turnstile. DC brushless motor and large gear mechanism ensures gates to run smoothly and quietly. With its passageway width of up to 900mmit is always a good choice for disabled and luggage access in bus stationmetro station office hotel hospitaletc.

hd ptz camera 30dv 1

Model NO LB-B08BD
Size  1400*200*980 mm
Motor DC brushless motor, 50W/24V
Arm Length Customized
Width of passage 600-900 mm
Infrared sensor 4 pairs
Arm material Acrylic glass
Power input AC 100-240V,50/60Hz
Open angle 90°
Working voltage 24V
Pass speed 40-50 persons/min
Operation condition -30℃ ～ +70℃
Structure 304 Stainless Steel
Working humidity ≤ 95%
Open direction Unidirectional or bidirectional
Input signal Open signal or 12v pulse>100ms;
Work environment Outdoor and Indoor
IP Degree IP43
Communication port RS485
Service life ≥ 3 million
Support  Access Control system ID/IC card, Fingerprint, Face recognition, Barcode/QR code,
phone app, ESD system, Visitor system, etc.
