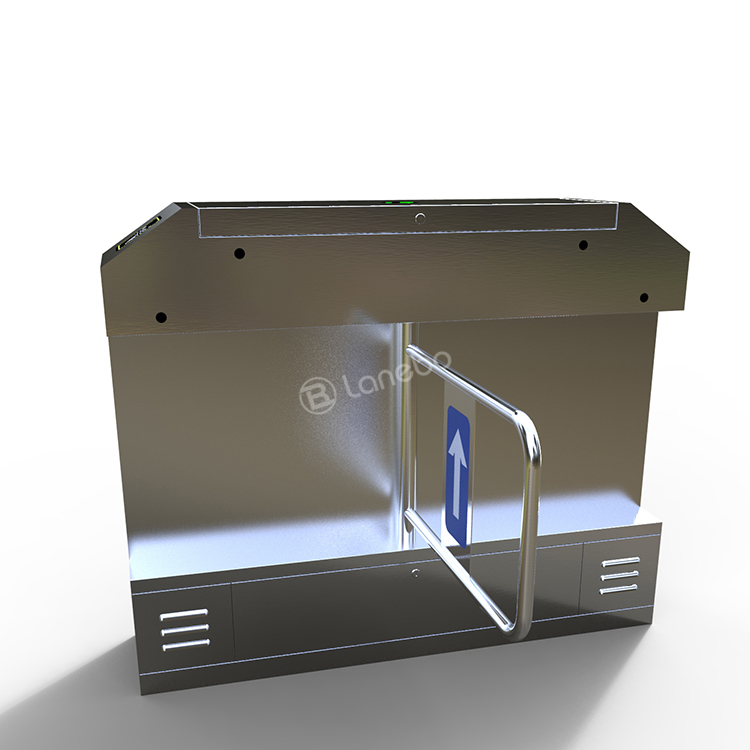

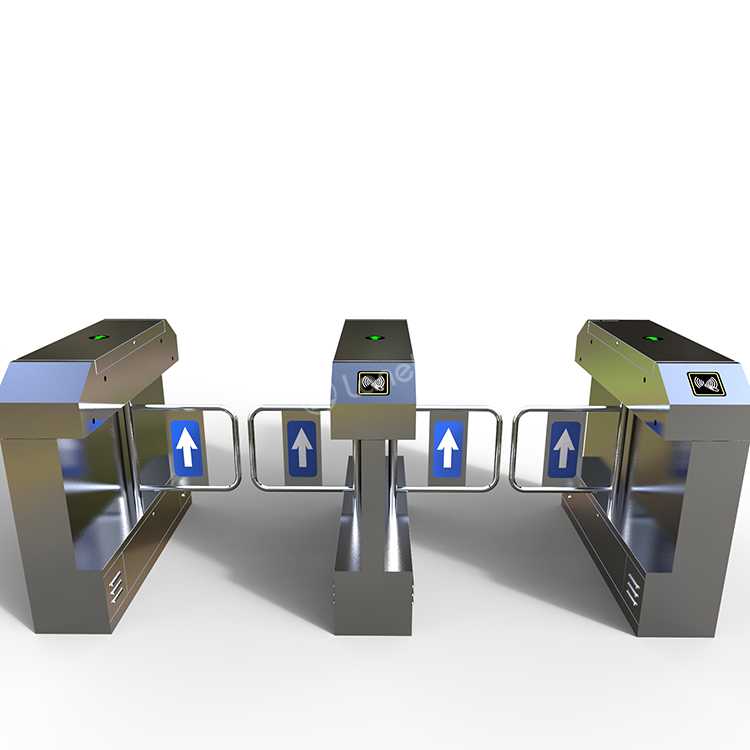

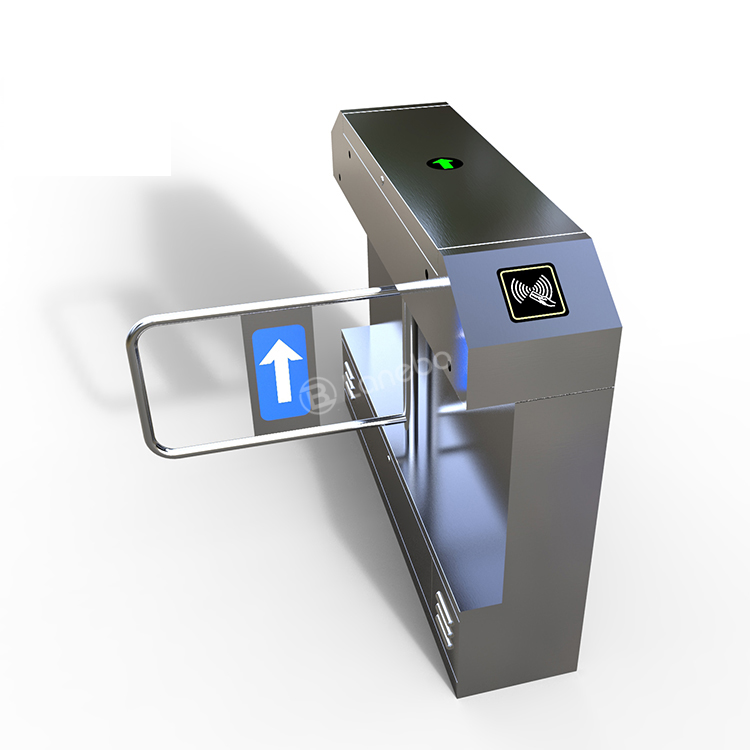

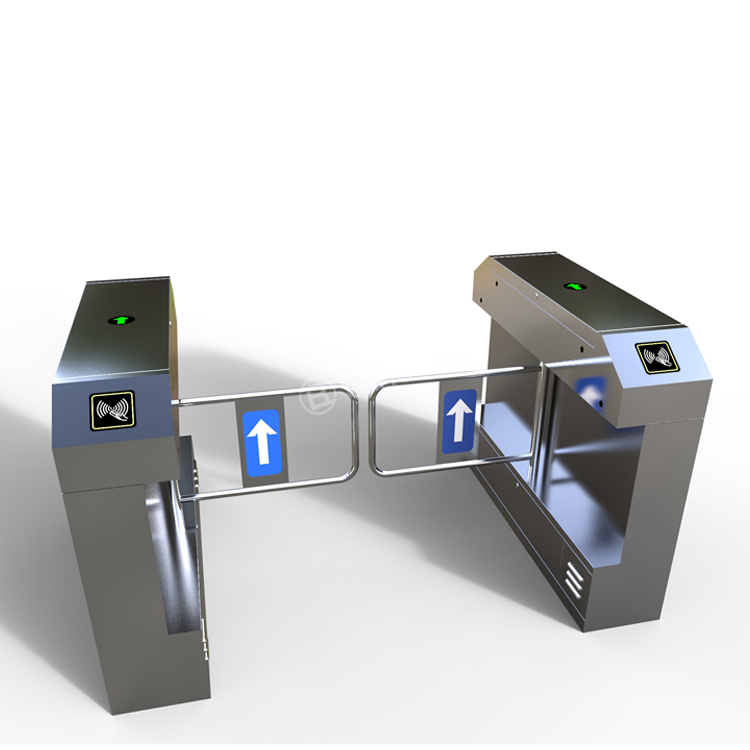

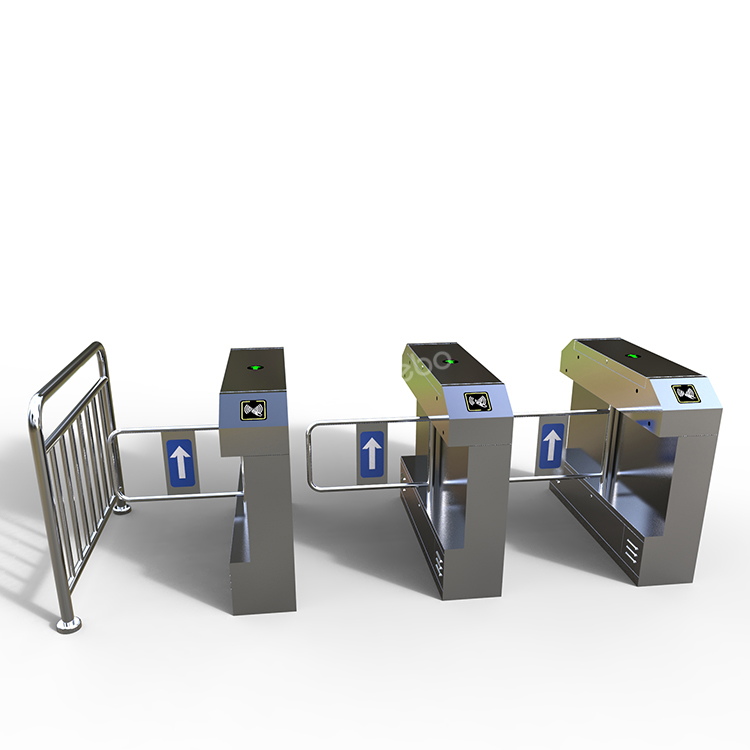

Passageway width of swing barrier gate is available from 600-1200mmwheelchairs/shopping trollers/prams so it is widely used in public places such as amusement parks campussupermarkets scenic spotsand so on.And pedestrians can easily find the right direction of the access with the visual LED light indicator.
| Model NO | LB-B02BD |
| Size | 1200*280*980 mm |
| Arm Length | 600 mm |
| Width of passage | 1200 mm |
| Infrared sensor | 4 pairs |
| Arm material | Stainless Steel |
| Power input | AC 100-240V,50/60Hz |
| Open angle | 90° |
| Working voltage | 24V |
| Pass speed | 40-50 persons/min |
| Operation condition | -30℃ ～ +70℃ |
| Structure | 304 Stainless Steel |
| Working humidity | ≤ 95% |
| Open direction | Unidirectional or bidirectional |
| Input signal | Open signal or 12v pulse>100ms; |
| Work environment | Outdoor and Indoor |
| IP Degree | IP43 |
| Communication port | RS485 |
| Service life | ≥ 3 million |
| Support Access Control system |
ID/IC card, Fingerprint, Face recognition, Barcode/QR code, phone app, ESD system, Visitor system, etc. |
