Lanebo Product

LB-Y06BD Flap turnstile

Product Description

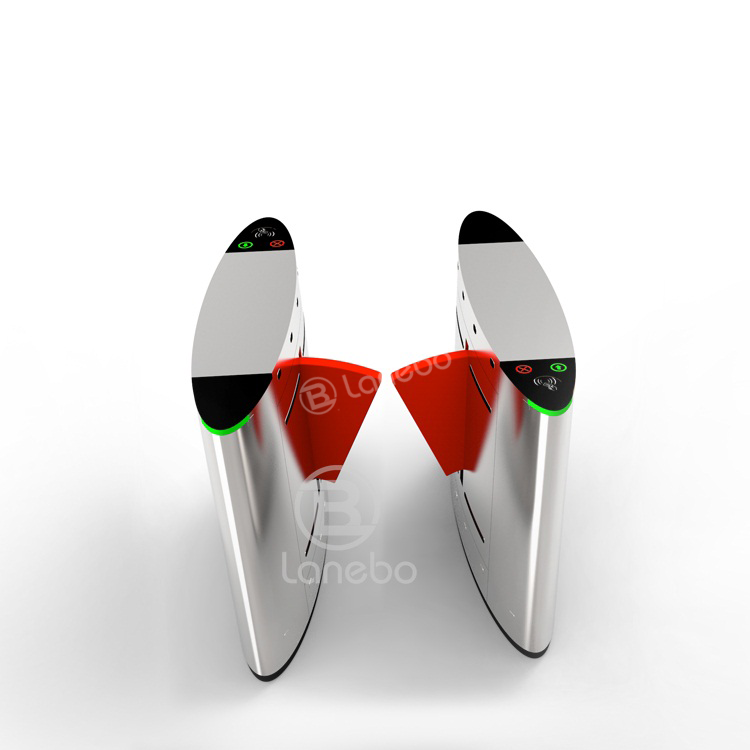

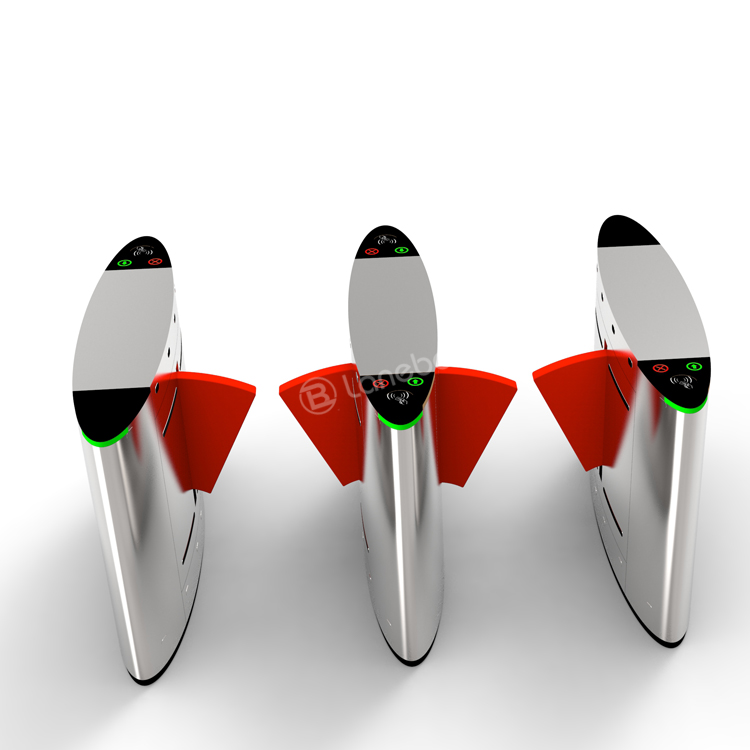

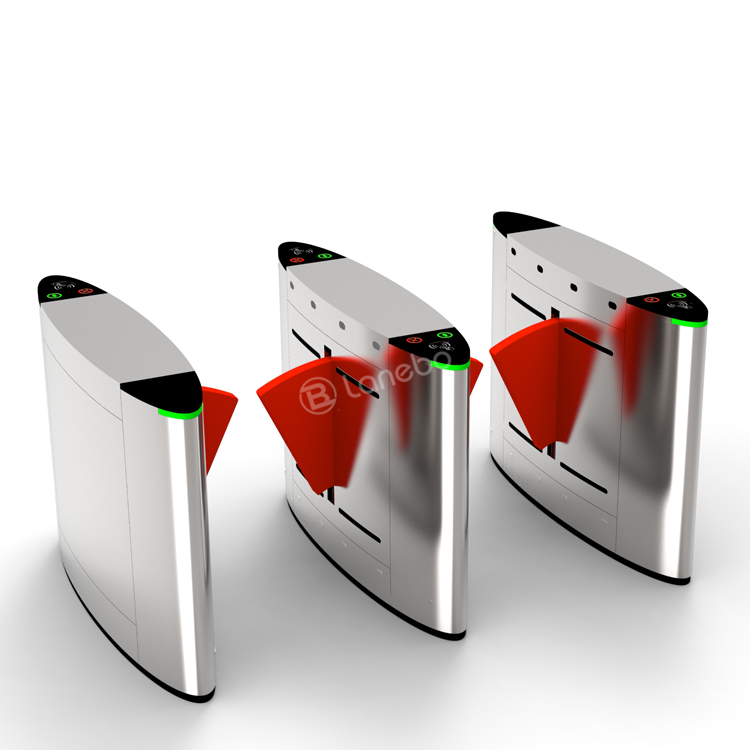

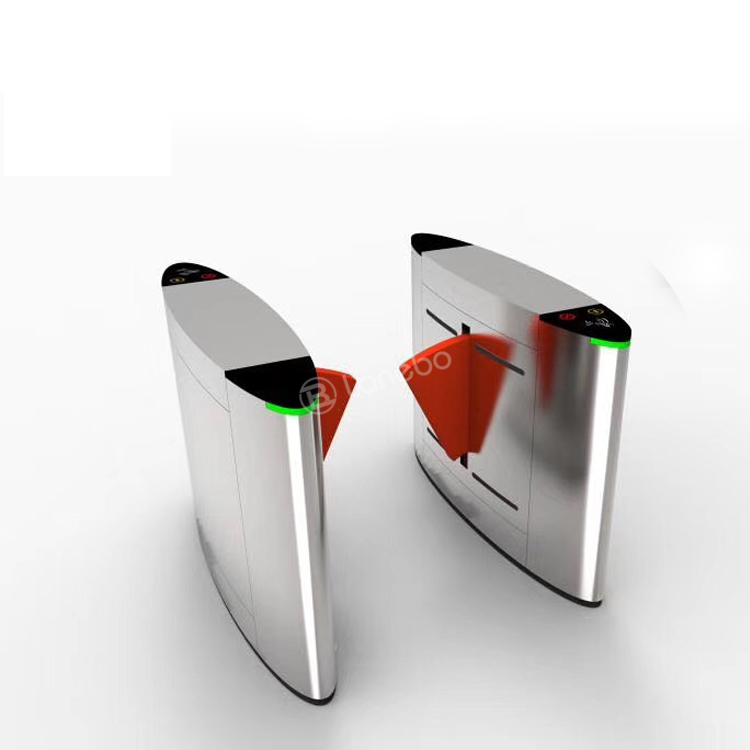

yle="color: rgb(136 136 136); font-family: Montserrat sans-serif; font-size: 16px;">The most special feature of flap turnstile LB-Y06BD is faster. They have the characteristics of fast opening safety and convenience. They are ideal management devices for pedestrian high-frequency traffic.

hd ptz camera 30dv 1

● Problem self-recovery and corrective measure ability, convenient maintain and adjus
● Motherboard with high clean sound read chips which could broadcast in light of user’s requirment
● Human base model indication function, real time displaying, improve the passing rate and convenient maintain
● Automatic counting indicating passenger’s number
● Resetting automatically, auto cancel the pass through and closed barrier in case nothing pass the channel in a setting time
●Anti pinch function with UPS to satisfy firefighter requires, ensure user’s safe
● Break-in ,tail ,over-pass and reverse alert function in order to keep orderliness and effective manage
● Standard input/output port, meanwhile leaving a port space for installing RS485 communication, connect and manage the integrated systems through the remote PC.
● Super combination capacity, adjustable model on site , adjustable speed of barrier slide ,Open signal with memory or with out set function

Technical parameters

Model NO LB-Y06BD
Size  1400*300*980mm
Channel width 600mm
Power input AC 100-240V,50/60Hz
Working voltage 24V
Pass speed 40-50 persons/min
Communication interface RS485
Operation condition -30℃～+70℃
Structure 304 Stainless Steel
Working humidity ≤ 95%
Open direction Unidirectional or bidirectional
Input signal Open signal or 12v pulse>100ms
Work environment Outdoor and Indoor
Infrared sensor 4 pairs
IP Degree IP43
Service life ≥5 million
Support  Access Control system ID/IC card, Fingerprint, Face recognition, Barcode/QR code,phone app, ESD system, Visitor system, etc.
