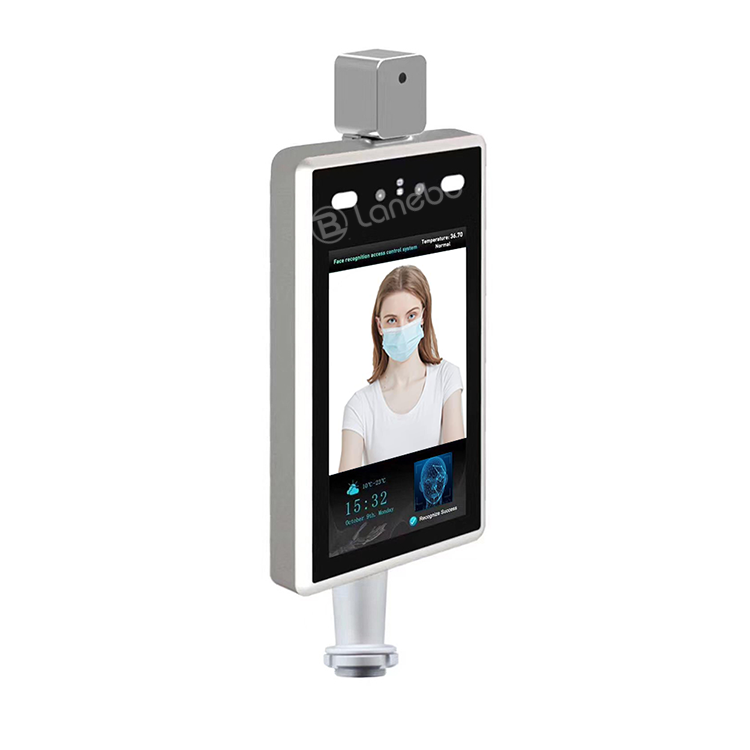

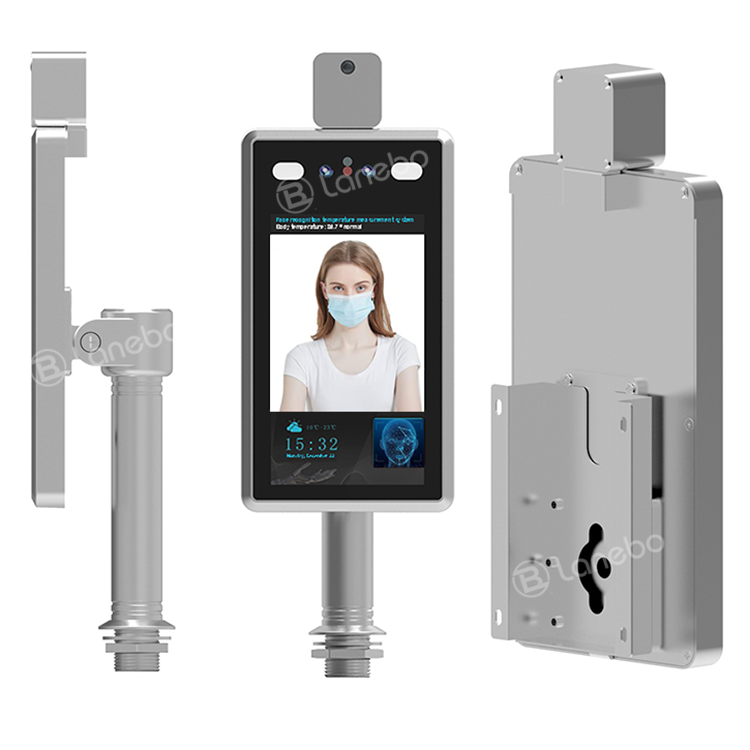

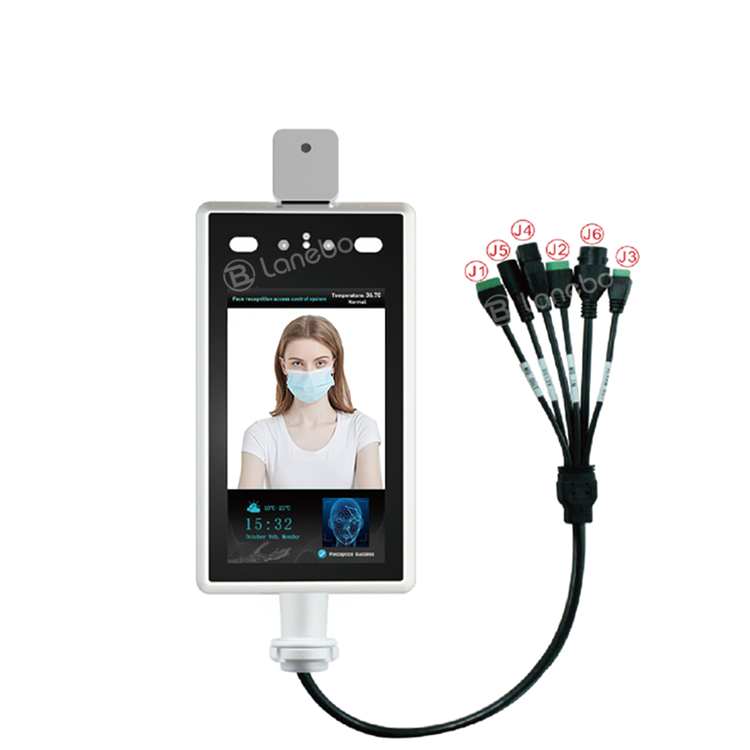

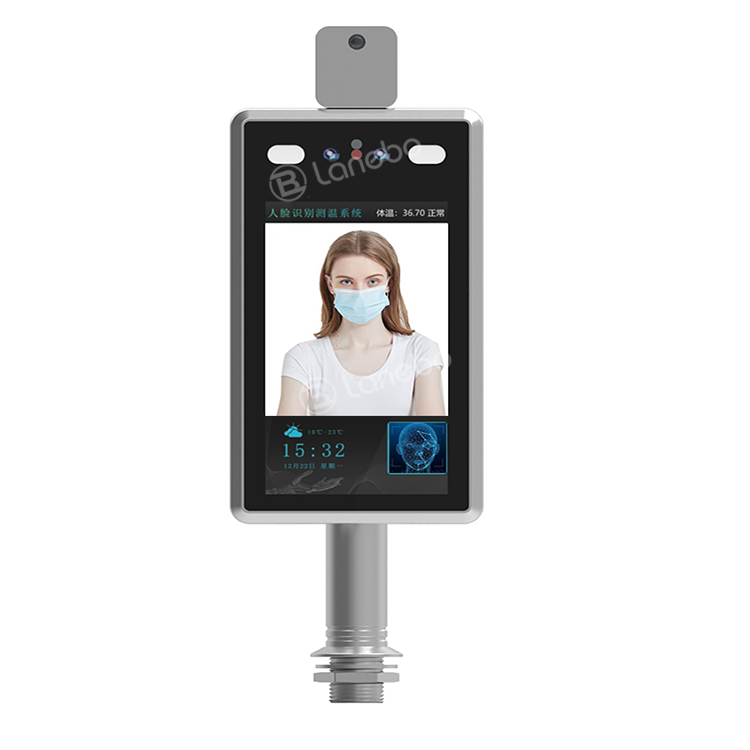

Built-in infrared non-touch temperature measurement module. When people is performing face recognition it can measure their forehead and facial skin temperature at the same time.

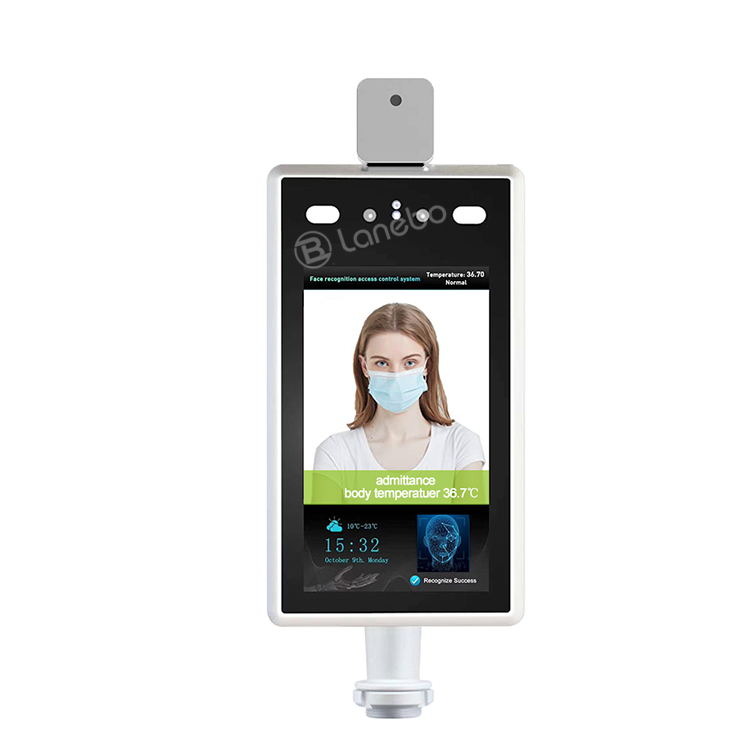

In a non-contact accurate reliable efficient and non-perceived way the terminal will issue an unusual warning to those whose body temperature exceeds normal values and show their temperature.
| Model NO | LB-FR102-8i | ||
| Hardware | |||
| Chipset | Hi3516DV300 | ||
| System | Linux operation system | ||
| RAM | 16G EMMC | ||
| Image sensor | 1/2.7" CMOS | ||
| Lens | 4.5mm | ||
| Camera Parameters | |||
| Camera | Binocular camera supports live detection | ||
| Effective pixel | 2Mega pixel,1920*1080 | ||
| Min. lux | Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 | ||
| SNR | ≥50db(AGC OFF) | ||
| WDR | ≥80db | ||
| Face Recognition | |||
| Height | 1.2-2.2 M, angle adjustable | ||
| Distance | 0.5-2 Meters | ||
| View angle | Vertical ±40 degree | ||
| Reco. Time | <500ms | ||
| Temperature | |||
| Range | 30-45(℃) | ||
| Accuracy | ±0.5(℃) | ||
| Distance | 0.3-0.8 | ||
| Response time | <300ms | ||
