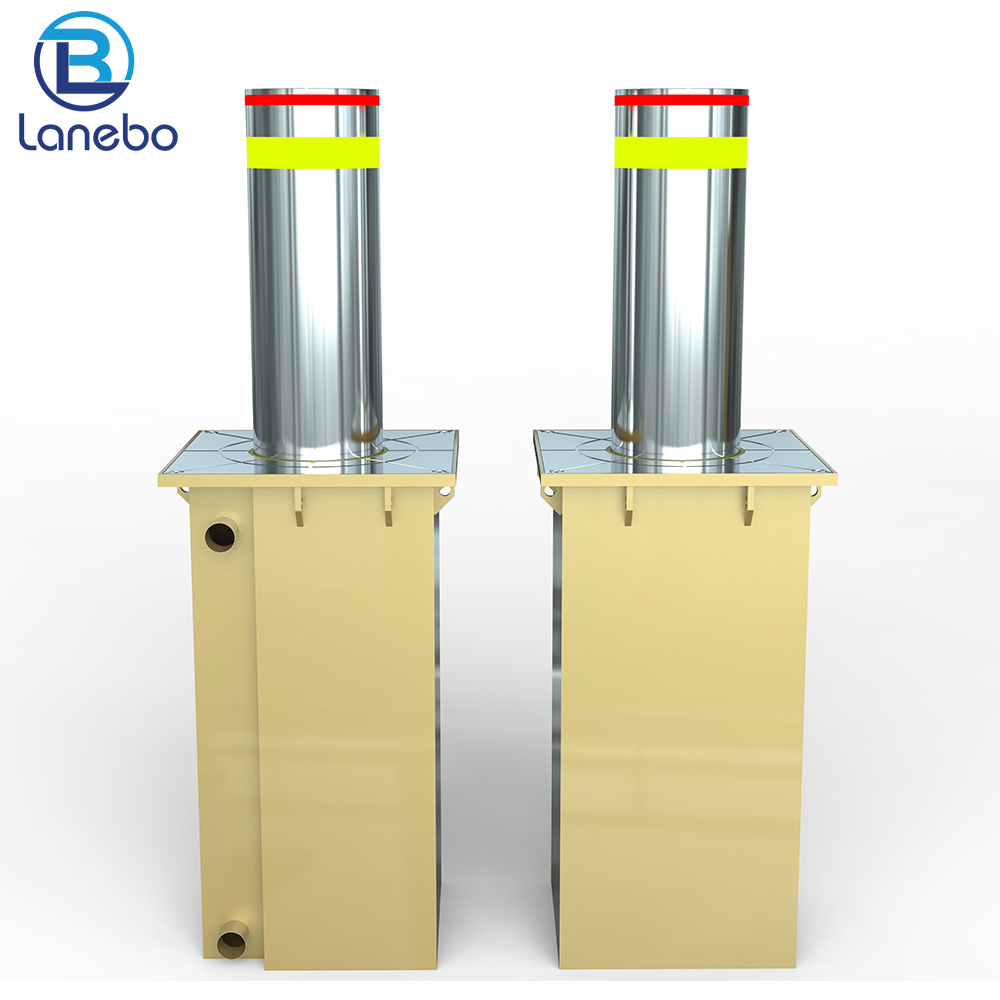

Automatic Square Hydraulic Bollards
Product Description
Model Type: LB-BOL02
Description:
1. System control: electro-hydraulic; power supply: 220V.
2. 304 stainless steel cylinder: diameter 219mm; thickness 6mm; lifting height 600MM.
3. Outer barrel: diameter 380X high 1100MM, embedded depth 1100MM, flange thickness 10MM.
4. Weight: about 90KG.
5. Waterproof and dustproof grade: IP68
6. Anti-collision level: k12 (equivalent to 120KM/hour impact, the car is blocked, and the equipment works as usual)
7. Passing pressure: 50 tons of container trucks can pass through.
8. Rising speed: ≤4S, falling speed: ≤3S.
9. Working temperature: -40°C~75°C (it is recommended to increase the automatic heating function of the core when the temperature is lower than -20°C)
Square outer barrel
